NDS3105A ISDB-T Multiplexer

NDS3105A ISDB_T multiplexer is a TS re-multiplexer developed to adapt Japan and those South American countries such as Brazil and Argentina. It supports 2 separate multiplexers which are fully complying with ISDB-T/ISDB-Tb standard. This multiplexer can transfer the head-end single program and multi-program to ISDB-T standard TS as required. Additionally, it also supports PSI/SI table editing and generating, single frequency network and IIP packet editing and inserting. What’s more, the NDS3105A ISDB-T multiplexer can support up to 12channels input, 2 ASI output and 2 IP output, the transmission mode is compatible with hierarchy. User can upgrade and control the multiplexer system online through network.

Message

Tel ：+86 14767784385

Skype：winwayjollyE-mail：winway@263.net

Outline

Features

* Fully complying with ISDB_T and ISDB_TB standard

* PSI/SI rebuilding, editing and generating; descriptor data inserting

* Support accurate PCR adjusting

* Support PID filtering, re-mapping

* Support 2 IP output over UDP protocol

* Support network remote upgrade

* Two separate channels TS re-Multiplexing

* Huge buffer, suddenly code stream resistance

* Support input 188/204Byte transmission stream packet

* Supporting hierarchy transmission, support SFN

* Support set transmission interval of PSI/SI table

* Support IIP packet editing and generator

* Support LCD/keyboard and net management, support NMS/SNMP

Specifications

Signal inputting	12 ASI input
	188/204Byte transmission stream packet
	TS packet mode and suddenly code rate mode
	GPS 10mhz reference clock inputting
	GPS 1pps signal inputting
Re-multiplexing	2 separate channels TS re-multiplexer
	PCR accurate adjusting
	PSI/SI table automatically generating
Modulation parameter	mode：mode1(2k) mode2(4k) mode3(8k)
	Guard interval：1/4 1/8 1/16 1/32
	Coding rate：1/2 2/3 3/4 5/6 7/8
	constellation：DQPSK QPSK 16QAM 64QAM
	Layer：A A+B A+B+C
	Bandwidth: 6MHz 7MHz 8MHz
SFN parameter	Maximum time delay：0ms ～ 1000ms
	Off set：-1000ms ～ +1000ms
	Device ID ：01 ～ 30
Output	2 ASI output(BNC)
	2 IP output(UDP protocol)
	RS encoding output supporting
	GPS 1pps and GPS 10Mhz loop-out(BNC)
General	Demission：44mmx482mmx410mm
	Temperature：0～45℃(operation) -20～80℃（storage）
	Power supply：220VAC±10%，50/60Hz，10W

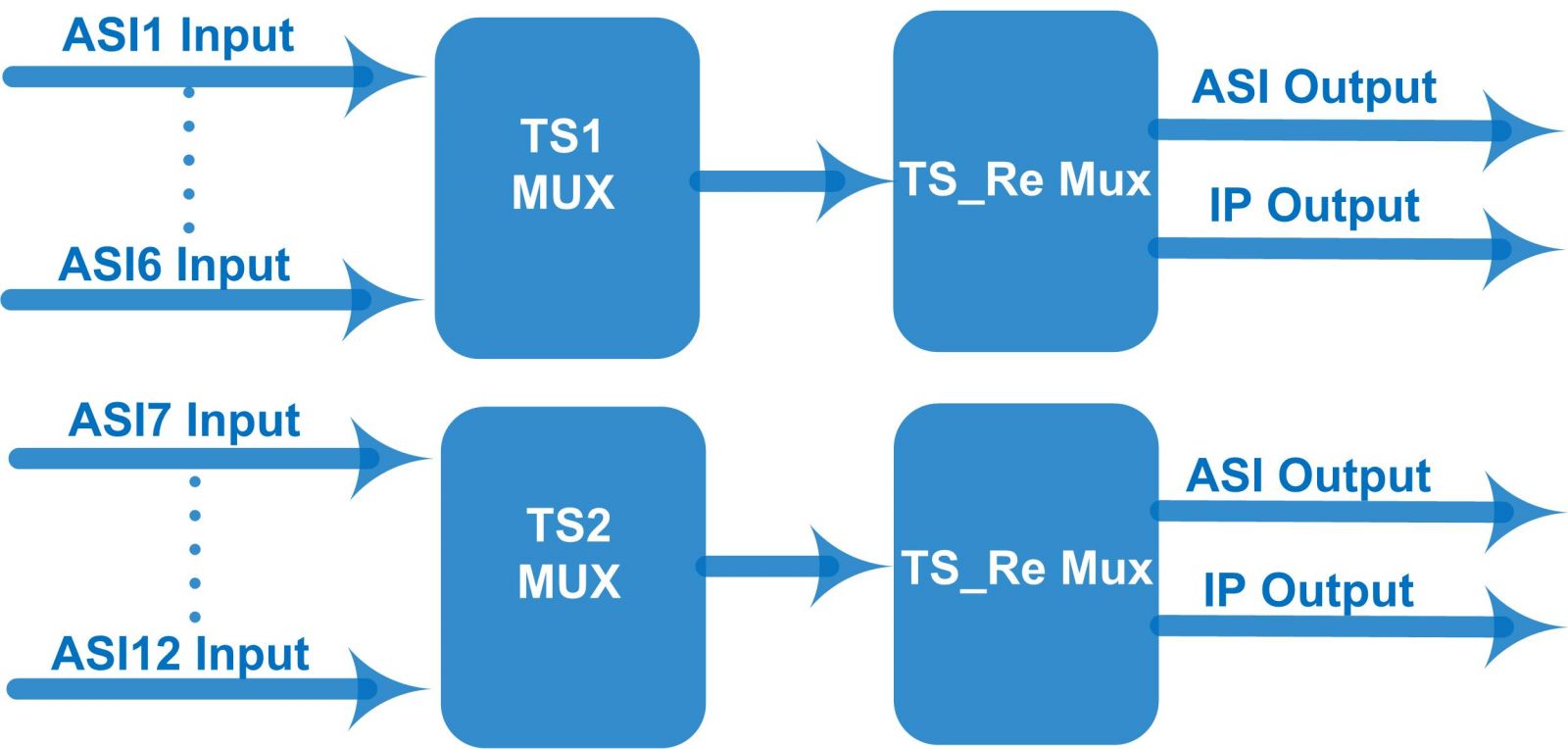

Principle Chart
